ZIP52 2K

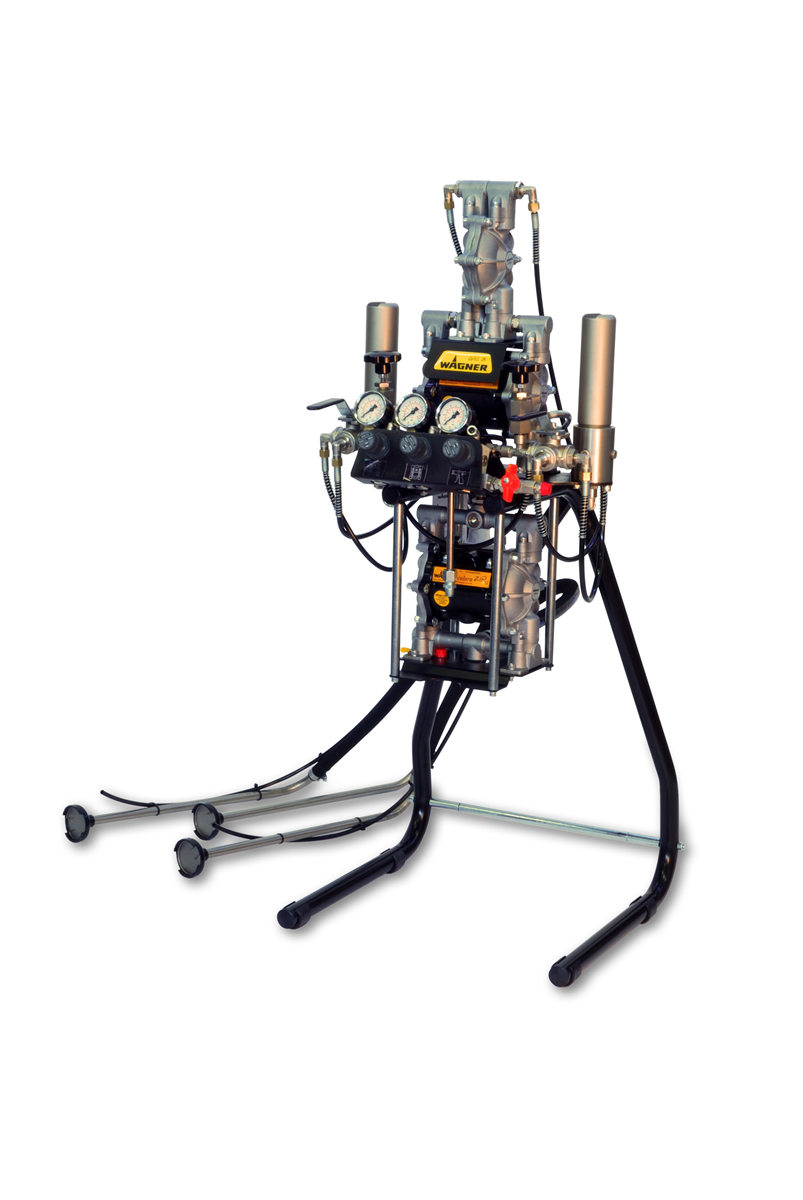

The Wâgner ZIP52 2K is a low pressure 1:1 double diaphragm pump based two component mixing and spraying machine designed for the application of polyester lacquers at a 1:1 mix ratio. The machine comes complete with a dedicated solvent flush pump for cleaning of the mixing tube, spray gun and paint hose.

Sprayable Materials: Polyester.

Areas of Application: Furniture, kitchen & shop fitting manufacturers.

Technical Data: Pump Ratio – 1:1; Mixing Ratio (Volume) – 1:1; Maximum Operating Pressure (Pump) – 8 Bar: Maximum Air Inlet Pressure – 8 Bar; Flow Volume per DoubleStroke (DS) – 65cc; Maximum Pump Speed – 60 DS/min; Maximum Delivery Rate – 3.9 l/min; Air Inlet Connection – ¼” BSP(F); Material Outlet Connection – ¼”BSP(M); Weight – 30 Kg.

Scope of Supply: ZIP52 2K c/w solvent flushing pump, suction and return hoses – spray gun & hoses extra.
